Tooling Solutions
We provide high-precision tooling solutions for five major sectors: automotive, medical, consumer electronics, packaging, industrial and other industries.
Micro-fluidic chips
Micro-fluidic biochip
-Product flatness: 0.15 mm
-High consistency requirement for micro‑channels of parts, machining tolerance within 0.003 mm.
-High detection sensitivity: 150 copies / mL
-High consistency requirement for micro‑channels of parts, machining tolerance within 0.003 mm.
-High detection sensitivity: 150 copies / mL

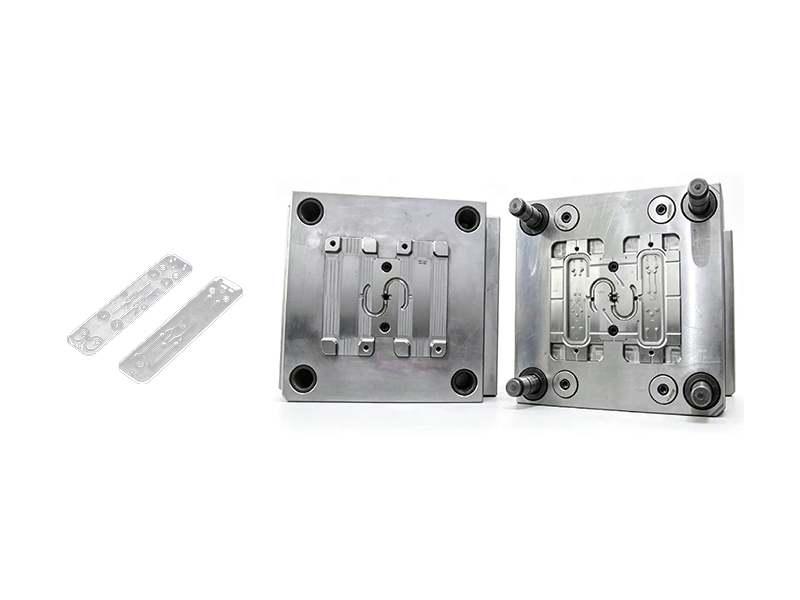

STR Amplification chip
-Product flatness: within 0.02 mm
-Minimum wall‑thickness of part: only 0.26 mm
-Dimensional tolerance: ±0.01 mm
-Minimum wall‑thickness of part: only 0.26 mm
-Dimensional tolerance: ±0.01 mm
Medical device

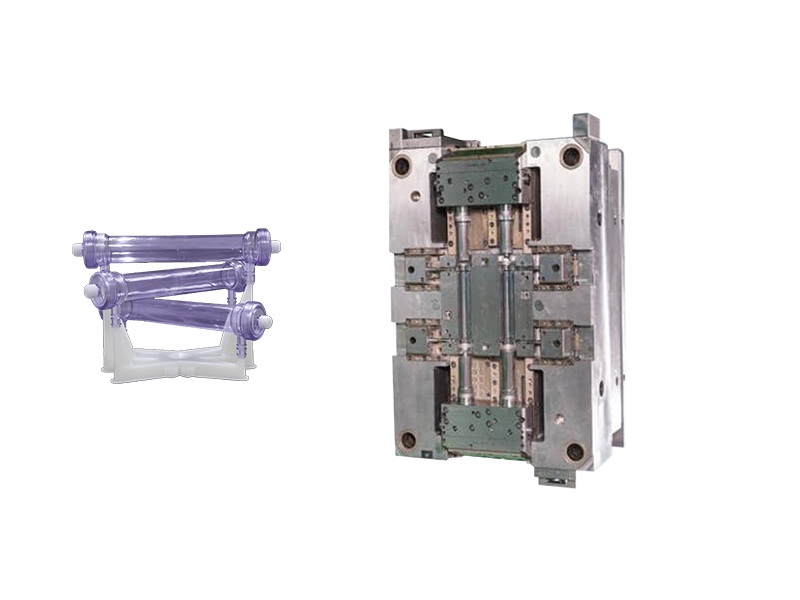

Hemodialysis Device Components
-Overall product length: 260 mm, draft angle of central inner bore: 0.25°.
-The inner bore is prone to scratch marks after demolding.
-Eccentricity of the product shall be controlled below 0.1 mm.
-The inner bore is prone to scratch marks after demolding.
-Eccentricity of the product shall be controlled below 0.1 mm.
Cervical‑cancer Therapy Lens Assembly
-No parting‑line mark or flash on product parting surface.
-Light‑transmission area meets optical‑performance requirements.
-The component is implantable inside human body for up to 24 hours, applied for cervical‑cancer therapy.
-Light‑transmission area meets optical‑performance requirements.
-The component is implantable inside human body for up to 24 hours, applied for cervical‑cancer therapy.
Minimally‑invasive Device for Mitral‑regurgitation
-Two‑color mold
-High‑transparency
-CPK＞1.33 for critical dimensions
-High‑transparency
-CPK＞1.33 for critical dimensions
Connector
-Special‑structured part, diameter of central tiny hole: 0.8 mm; eccentricity of the micro‑hole shall not exceed 0.1 mm.
-Full dimensions pass inspection, CPK＞1.33 for critical dimensions.
-Full dimensions pass inspection, CPK＞1.33 for critical dimensions.
Laboratory consumables

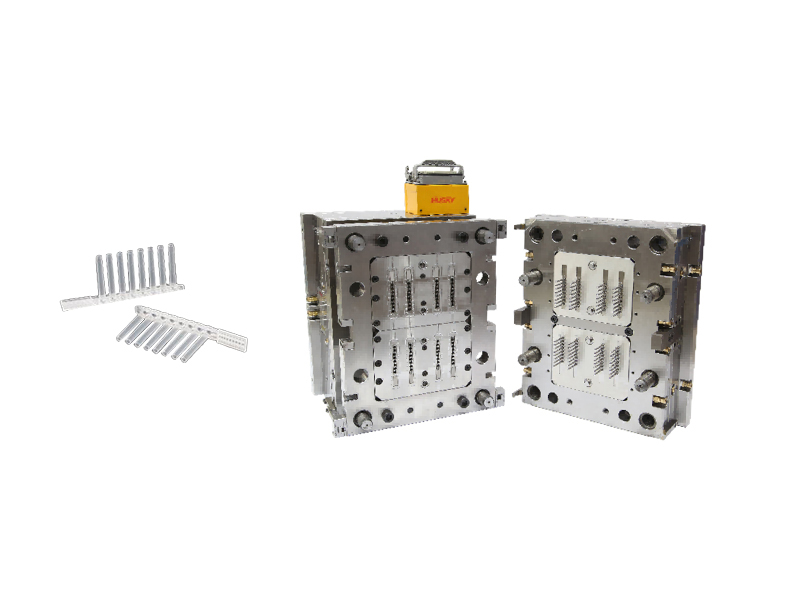

8 Tip Comb magnet
-8‑cavity design, molding cycle: 20 s
-Perpendicularity of 8 pillars ＜ 0.15 mm
-Flatness: 0.1 mm
-Easy insertion & extraction during operation, no jamming on plate and no magnetic‑bead residue.
-Perpendicularity of 8 pillars ＜ 0.15 mm
-Flatness: 0.1 mm
-Easy insertion & extraction during operation, no jamming on plate and no magnetic‑bead residue.

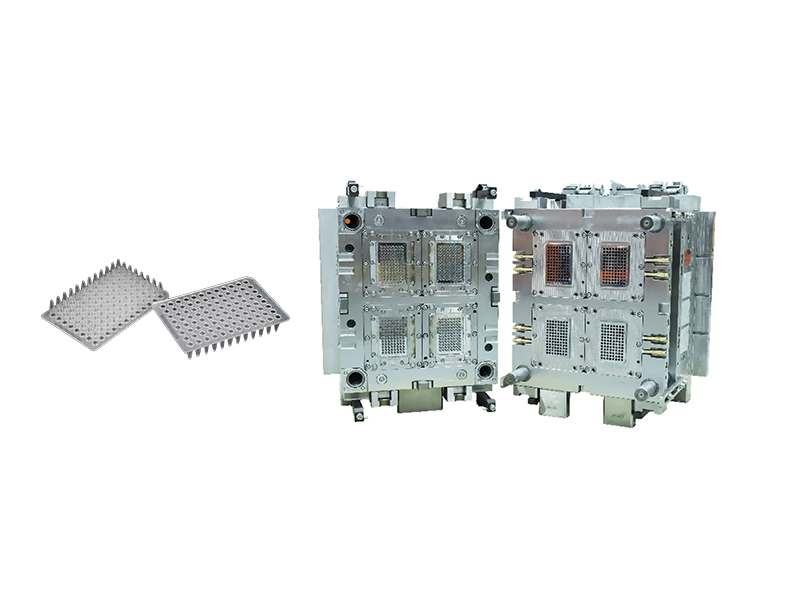

PCR Plate
-4‑cavity design
-24‑point synchronous hot‑runner pin‑gate injection
-Wall‑thickness of tube body ＜ 0.3 mm
-Molding cycle: 29 s
-100 % liquid‑tight on plate body, no‑leakage
-24‑point synchronous hot‑runner pin‑gate injection
-Wall‑thickness of tube body ＜ 0.3 mm
-Molding cycle: 29 s
-100 % liquid‑tight on plate body, no‑leakage

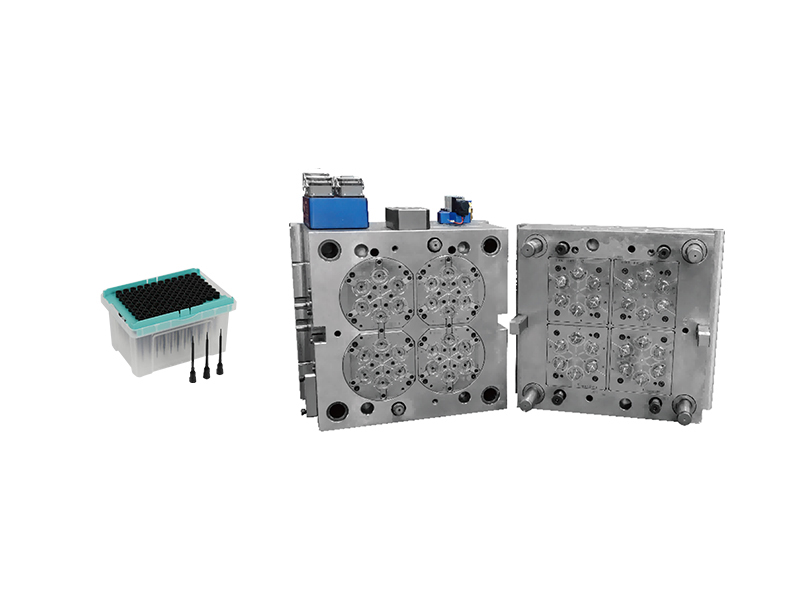

Pipette tip
-24‑cavity design
-Minimum orifice dimension: 0.3 mm
-Perpendicularity ＜ 0.5 mm
-Less than 3 % batch‑to‑batch variation at pipette‑fitting position, air‑tight, no air‑leakage.
-Minimum orifice dimension: 0.3 mm
-Perpendicularity ＜ 0.5 mm
-Less than 3 % batch‑to‑batch variation at pipette‑fitting position, air‑tight, no air‑leakage.

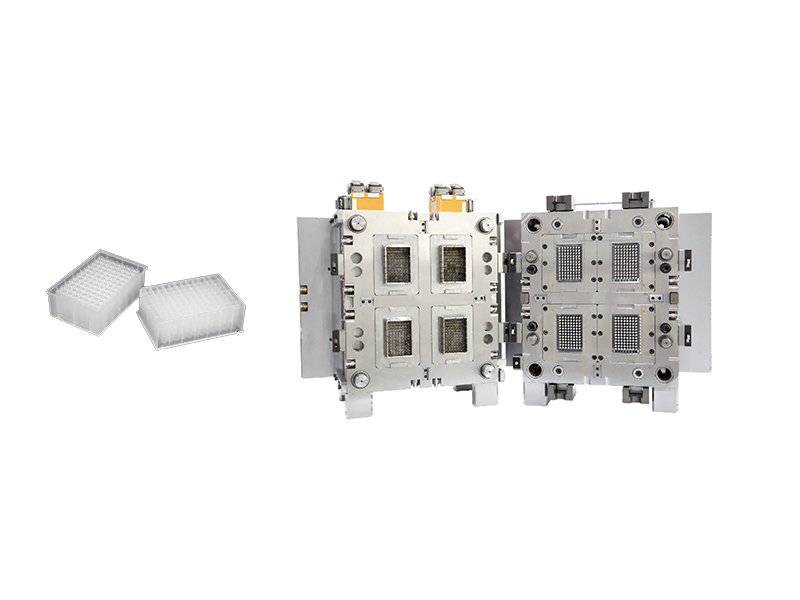

Deep‑well Plate
-4‑cavity design
-24‑point synchronous valve‑gate injection
-Cycle time: 28 s
-Flatness of film‑sealing surface ＜ 0.2 mm
-24‑point synchronous valve‑gate injection
-Cycle time: 28 s
-Flatness of film‑sealing surface ＜ 0.2 mm
