Tooling Solutions
We provide high-precision tooling solutions for five major sectors: automotive, medical, consumer electronics, packaging, industrial and other industries.
Personal‑care Products

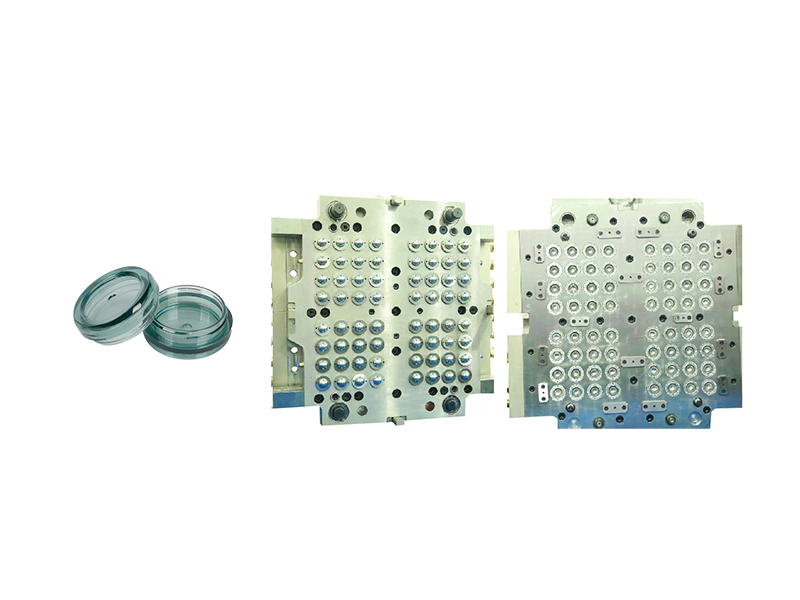

Jar/Cap
-High‑transparent thick‑wall parts made of PCTG, PET and other materials, wall thickness over 12 mm.
-Multi‑cavity hemispherical ball‑products, no parting‑line flash or pinch‑off mark on the parting surface.
-Multi‑cavity hemispherical ball‑products, no parting‑line flash or pinch‑off mark on the parting surface.
Pump head
-64‑cavity actuator with slide core‑pulling, molding cycle: 12s
-96‑cavity screw‑cap (Chaplet), thread turning by hydraulic cylinder, molding cycle: 14s
-96‑cavity screw‑cap (Chaplet), thread turning by hydraulic cylinder, molding cycle: 14s

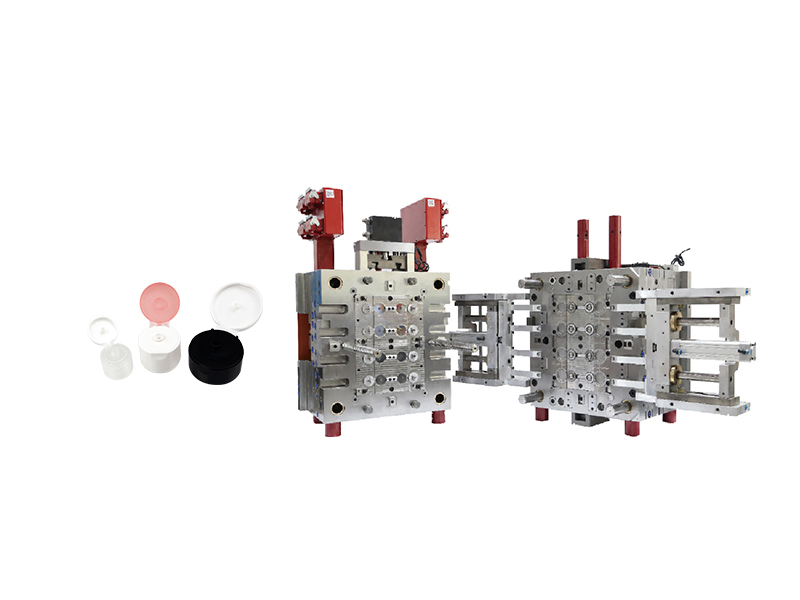

Hinged-flip cap
-16‑cavity vertical in‑mold closing (Vertical‑IMC), molding cycle: 13s
-8‑cavity turntable‑free core‑back two‑color cap, lead‑screw thread demolding + in‑mold cap closing, molding cycle: 17s
-8‑cavity turntable‑free core‑back two‑color cap, lead‑screw thread demolding + in‑mold cap closing, molding cycle: 17s
Hinged-flip cap
-16‑cavity vertical in‑mold closing (Vertical‑IMC), molding cycle: 13s
-8‑cavity turntable‑free core‑back two‑color cap, lead‑screw thread demolding + in‑mold cap closing, molding cycle: 17s
-8‑cavity turntable‑free core‑back two‑color cap, lead‑screw thread demolding + in‑mold cap closing, molding cycle: 17s
Food‑grade Packaging

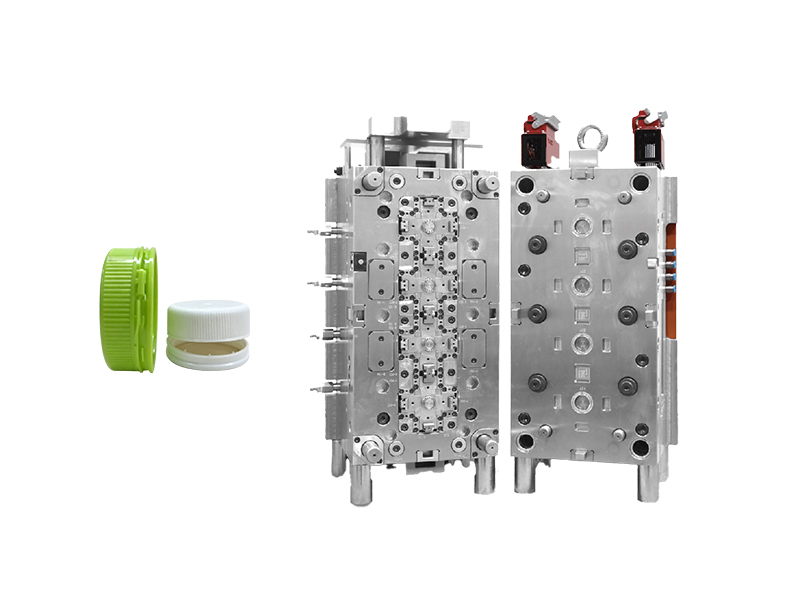

One-piece Hinged flip cap
-28/38 mm one‑piece hinged‑flip cap
-4‑cavity injection mold for mass‑production ‑ Molding cycle time: 12 s
-Equipped with 4 sets of compact slides. No post‑cutting operation for tamper‑evident ring is required after molding.
-Fully compliant with the EU Single‑Use Plastics (SUP) Directive effective from July 3, 2024, which mandates non‑detachable hinged caps for beverage bottles.
-4‑cavity injection mold for mass‑production ‑ Molding cycle time: 12 s
-Equipped with 4 sets of compact slides. No post‑cutting operation for tamper‑evident ring is required after molding.
-Fully compliant with the EU Single‑Use Plastics (SUP) Directive effective from July 3, 2024, which mandates non‑detachable hinged caps for beverage bottles.

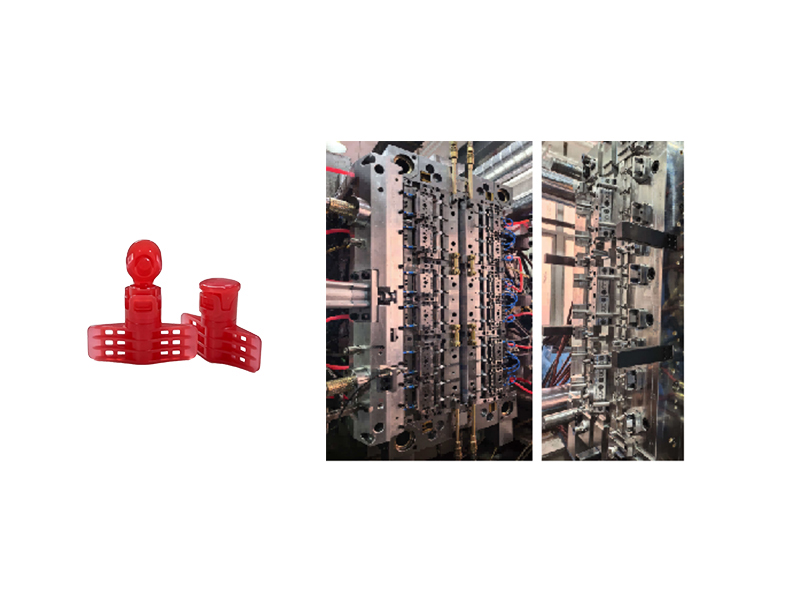

One‑piece Hinged‑flip Cap
-24‑cavity in‑mold cap‑closing (Mini‑spout), molding cycle: only 12 s

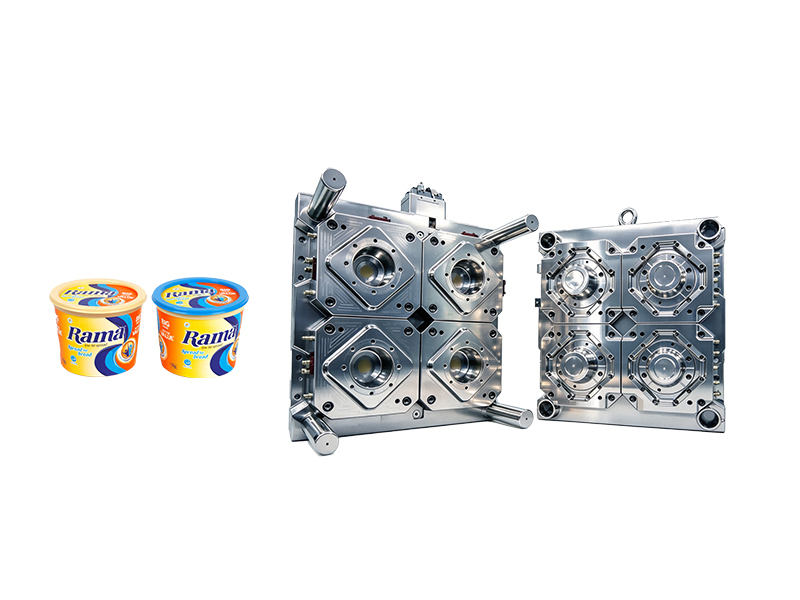

In‑Mold Labeling‑IML
-Thin‑wall injection molding of PP, integrated fusion‑molding with in‑mold label. While realizing lightweight thin‑wall structure, the rigidity of container is improved. It features high cleanliness during production, powerful physical anti‑counterfeiting performance, high‑volume efficient production and full recyclability. This is a premium and proven solution for thin‑wall plastic food packaging.

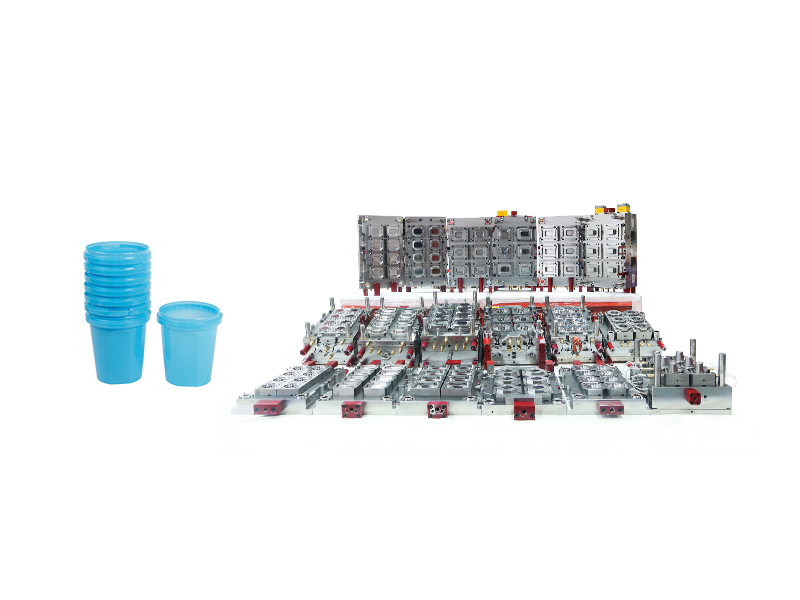

Thin-wall container
-Thin‑wall container: Wall thickness ≤ 0.35 mm, molding cycle ≤ 4 s
-Capacity: 50 ml ‑ 11 L
-Applied for dairy & ready‑to‑eat hot‑food containers, butter and sauce pots, ready‑meal and soup‑packaging containers, etc.
-Capacity: 50 ml ‑ 11 L
-Applied for dairy & ready‑to‑eat hot‑food containers, butter and sauce pots, ready‑meal and soup‑packaging containers, etc.
Multi-cavities Stack-mold

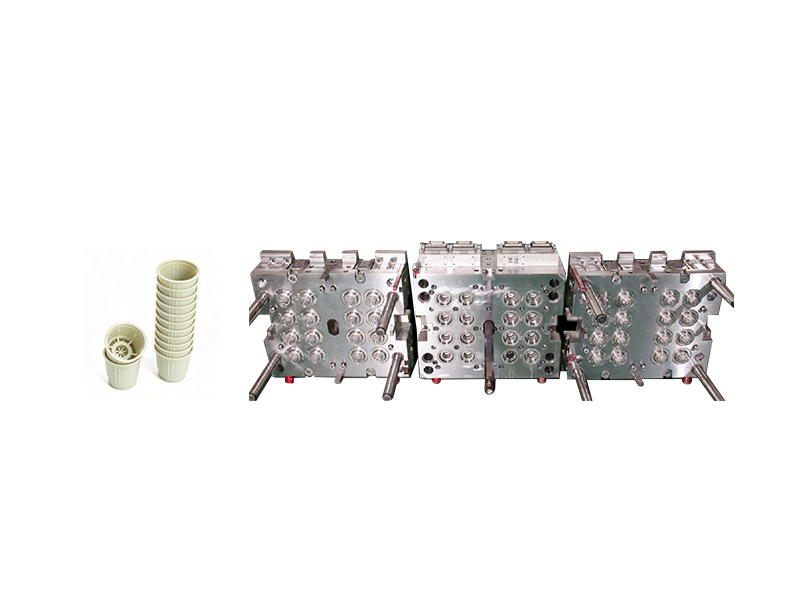

-32‑cavity stack mold for coffee capsules, molding cycle: 9 s
Multi-cavities Stack-mold

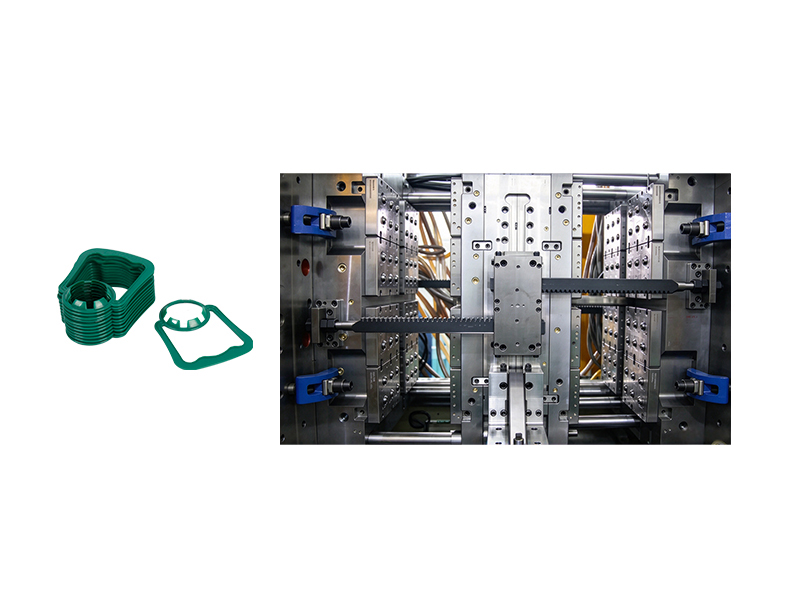

-96‑cavity stack mold for carry‑handles, molding cycle: 7.5 s, daily output over 1,000,000 pcs
